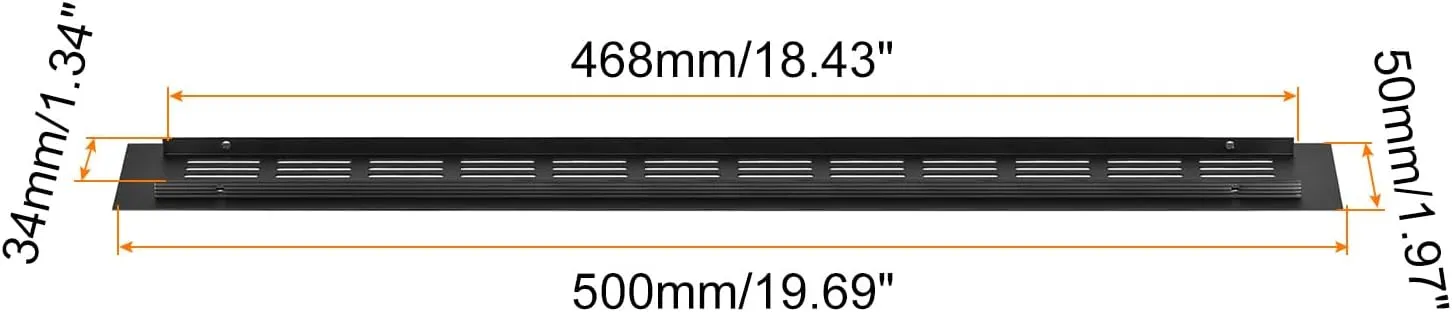

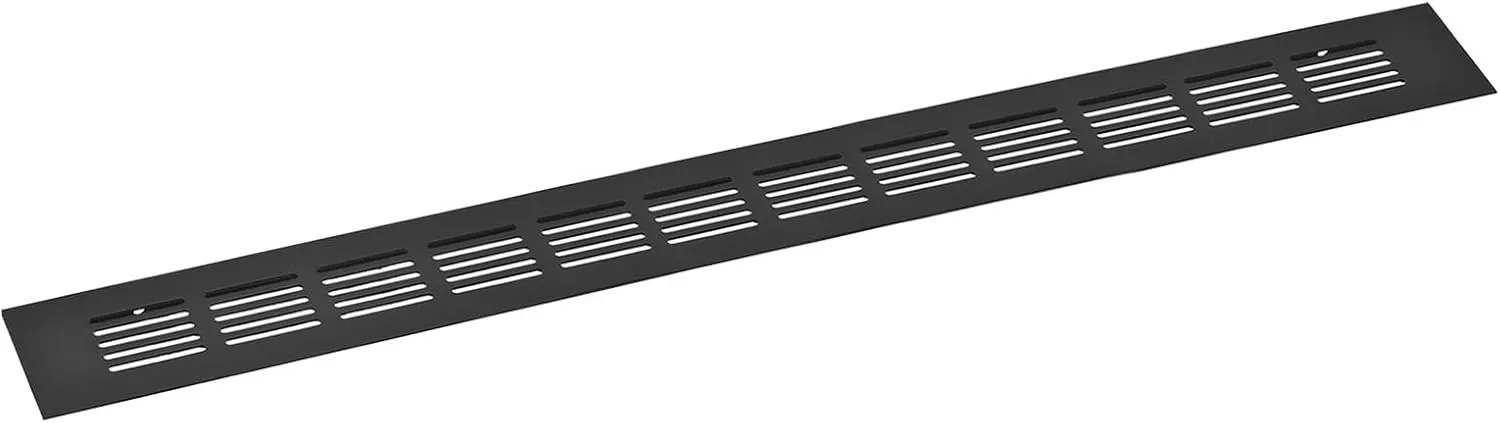

- Total Size: 500 x 50mm / 19.69" x 1.97"(L*W); Fit for Install Hole Size: 468 x 34mm / 18.43" x 1.34"(L*W); Thickness: 9mm / 0.35"; Mounting Hole Diameter: 3mm / 0.12"; Mounting Hole Distance: 418mm / 16.46"; Package Content: 1pcs x Ventilation Cover(Not include screws)

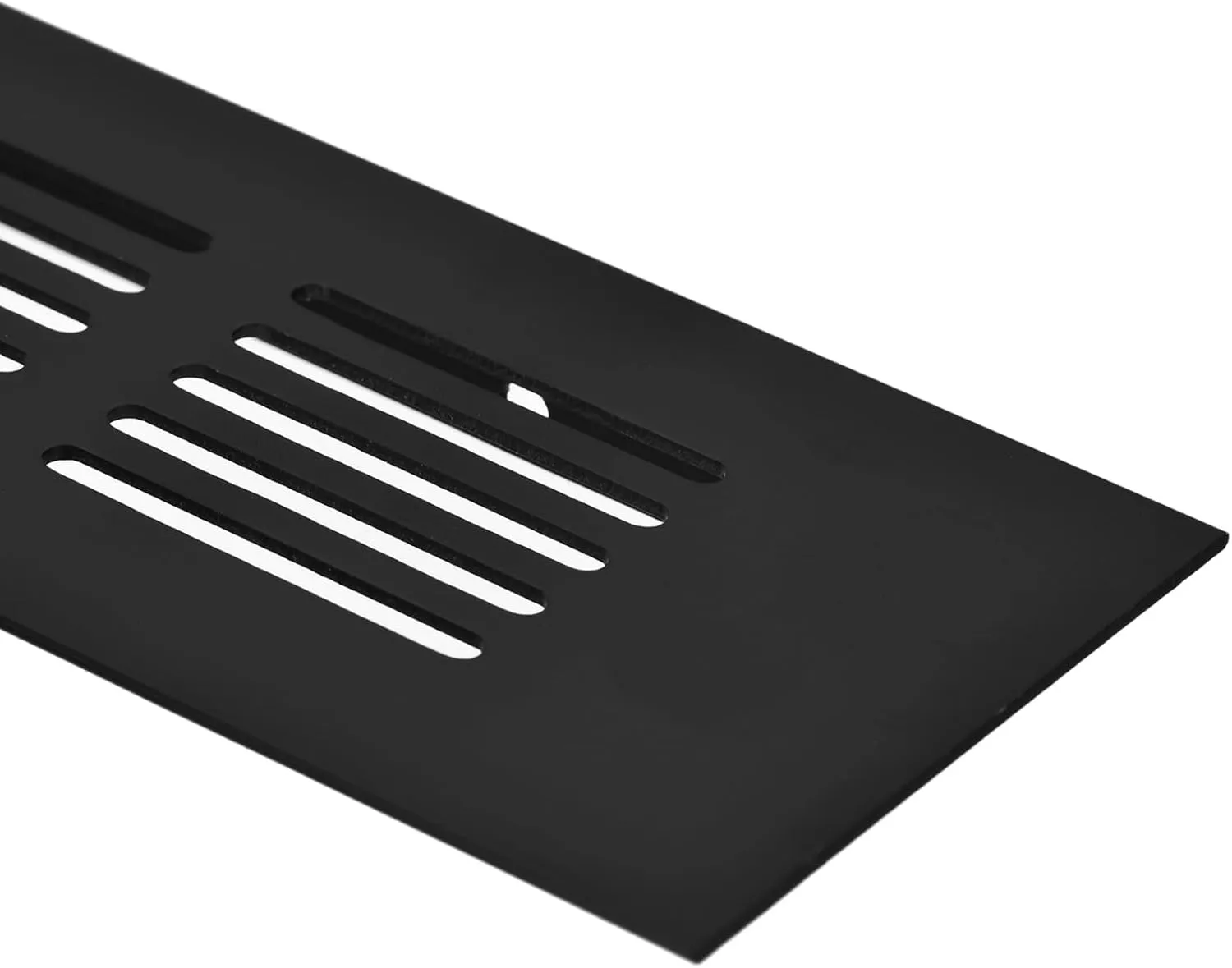

- Material: The ventilation grille is made of aluminum alloy, an anodized surface finish, with corrosion resistance, insulation and heat resistance, good bending strength, is not easy to deform, and can be used for a long time.

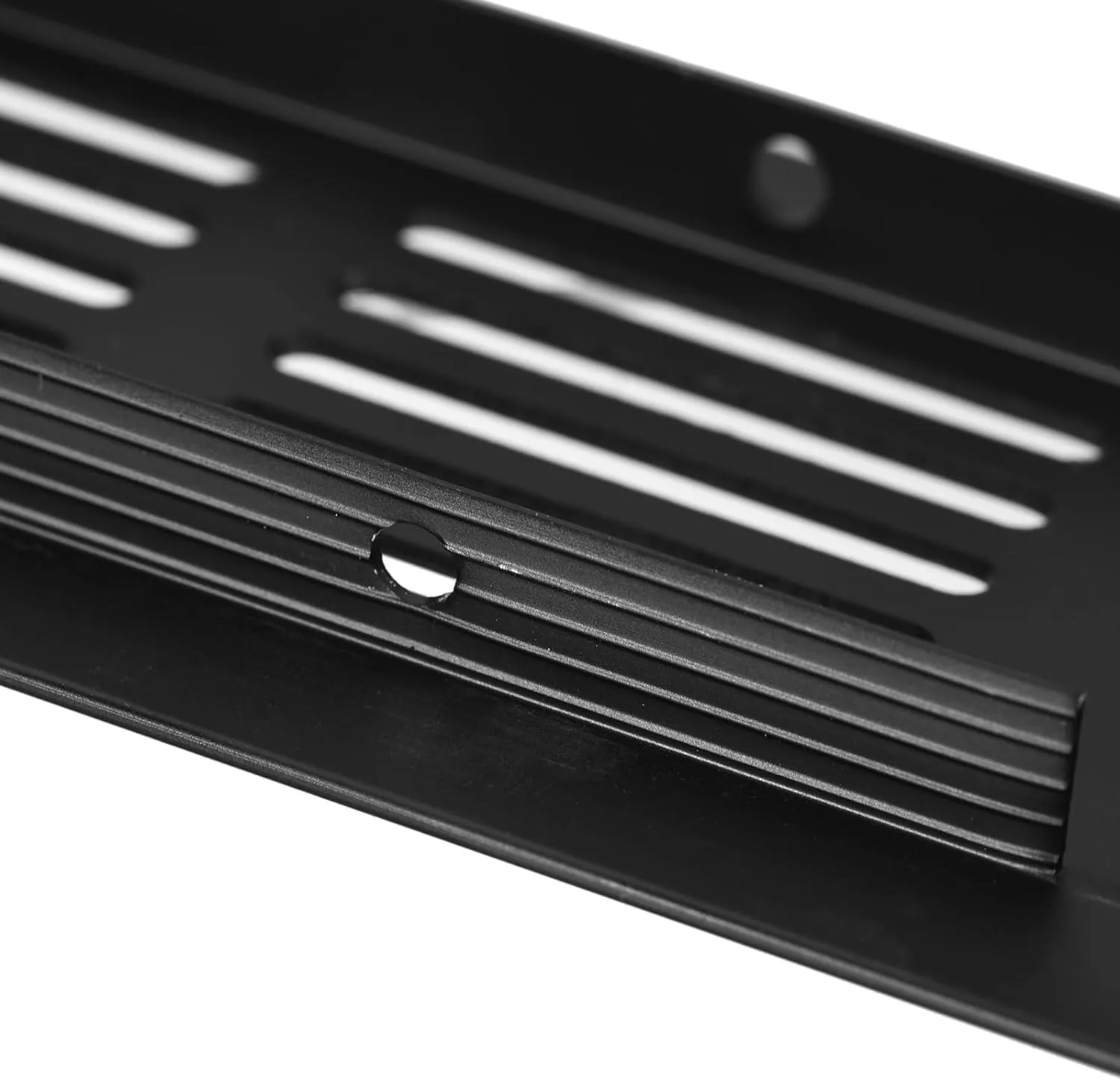

- Design: The air vent cover adopts the design of striped holes, the grid distribution is uniform, and the ventilation effect is good. Can effectively resist the outside dust. The wavy inner strip card slot can be firmly fastened after installation.
- Installation: There are mounting holes on the side of the card slot. Single-side installation only needs to install the ventilation cover directly and fix it with screws. Double-sided installation needs to use glass glue to spread evenly in the slot area, and it can be installed directly. Note that the slot width of the double-sided installation needs to be increased by 2mm from the conventional one.

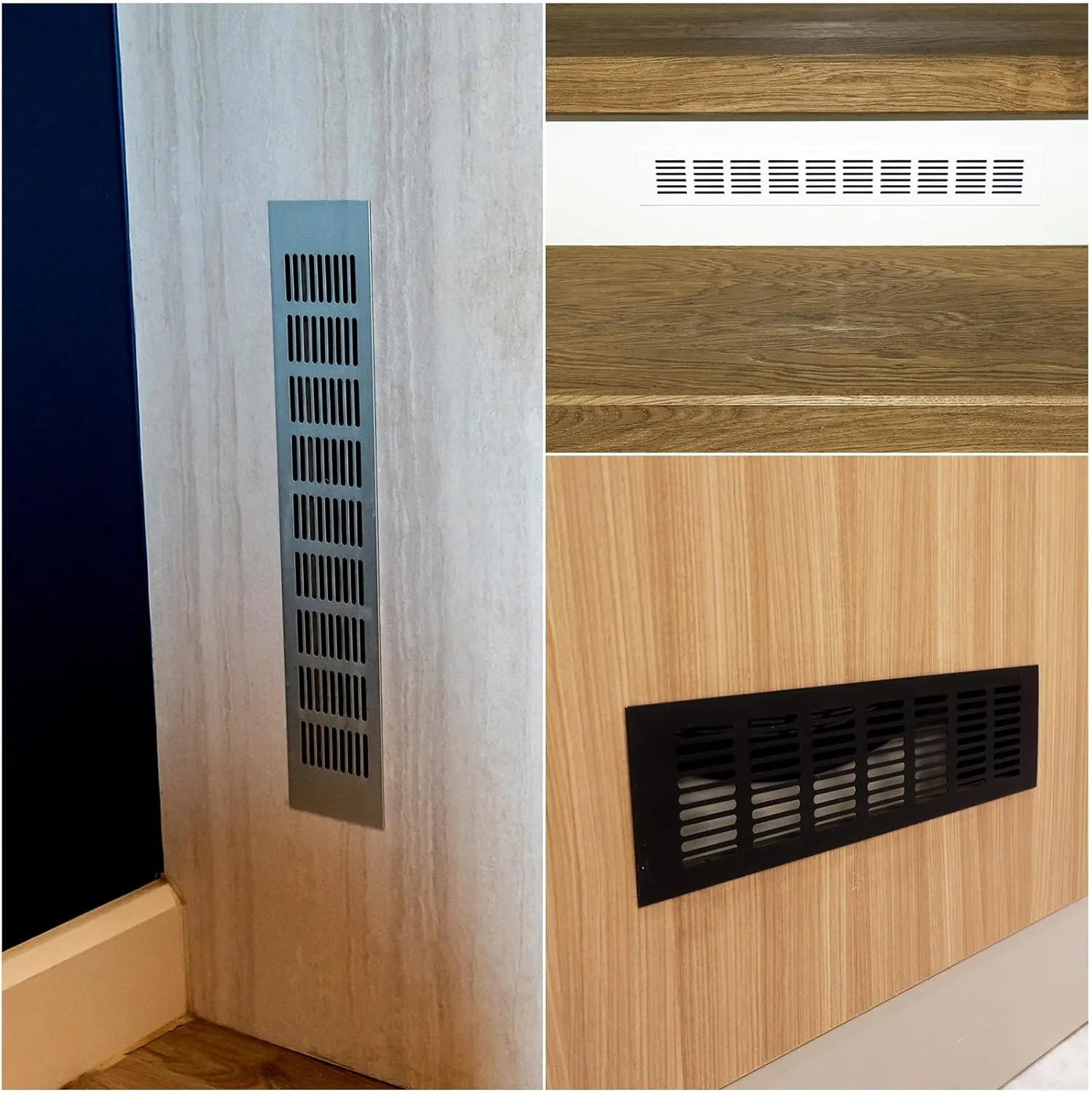

- Application: Fixed on the back or side panel of the cabinet for ventilation. This type of vent is most suitable for small projects and local ventilation, such as sink cabinets, kitchen cooktop cabinets, bathroom power distribution cabinets, side wall ceiling and floor vents.
