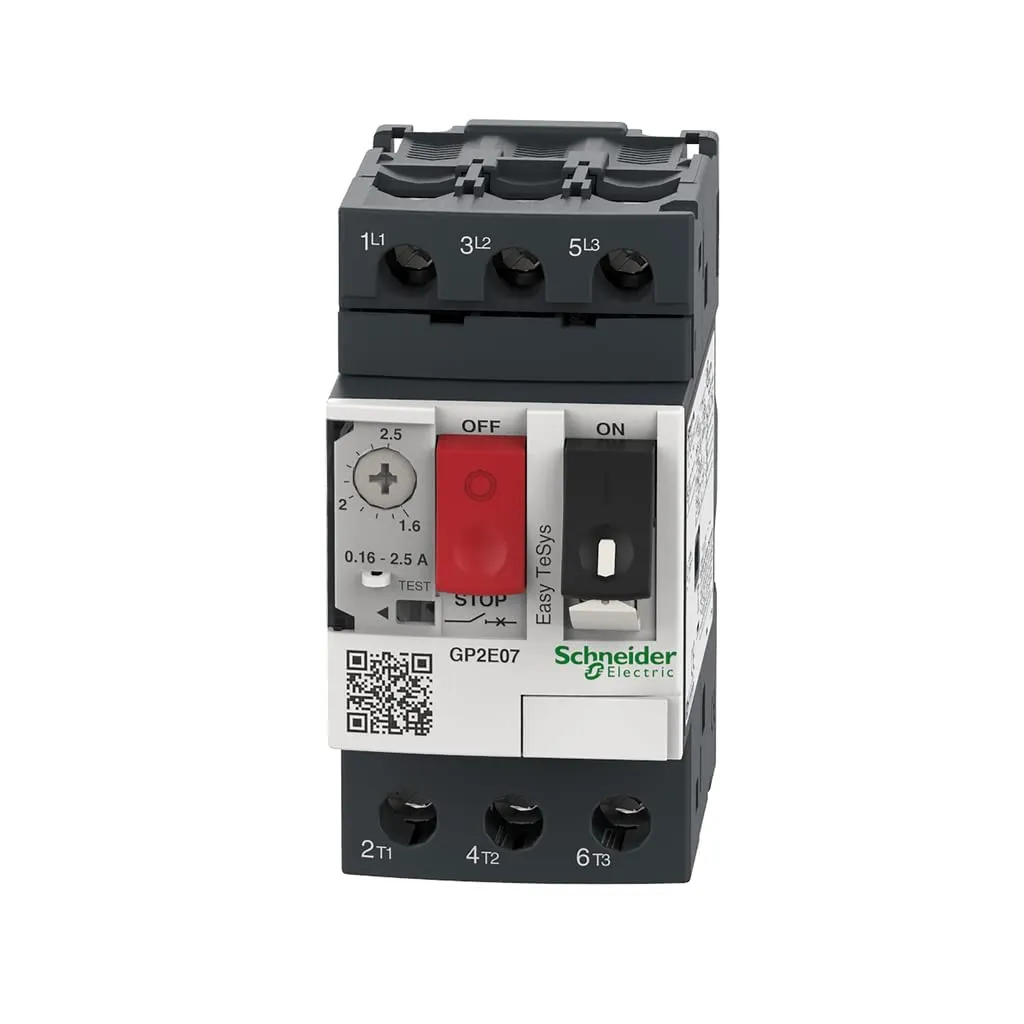

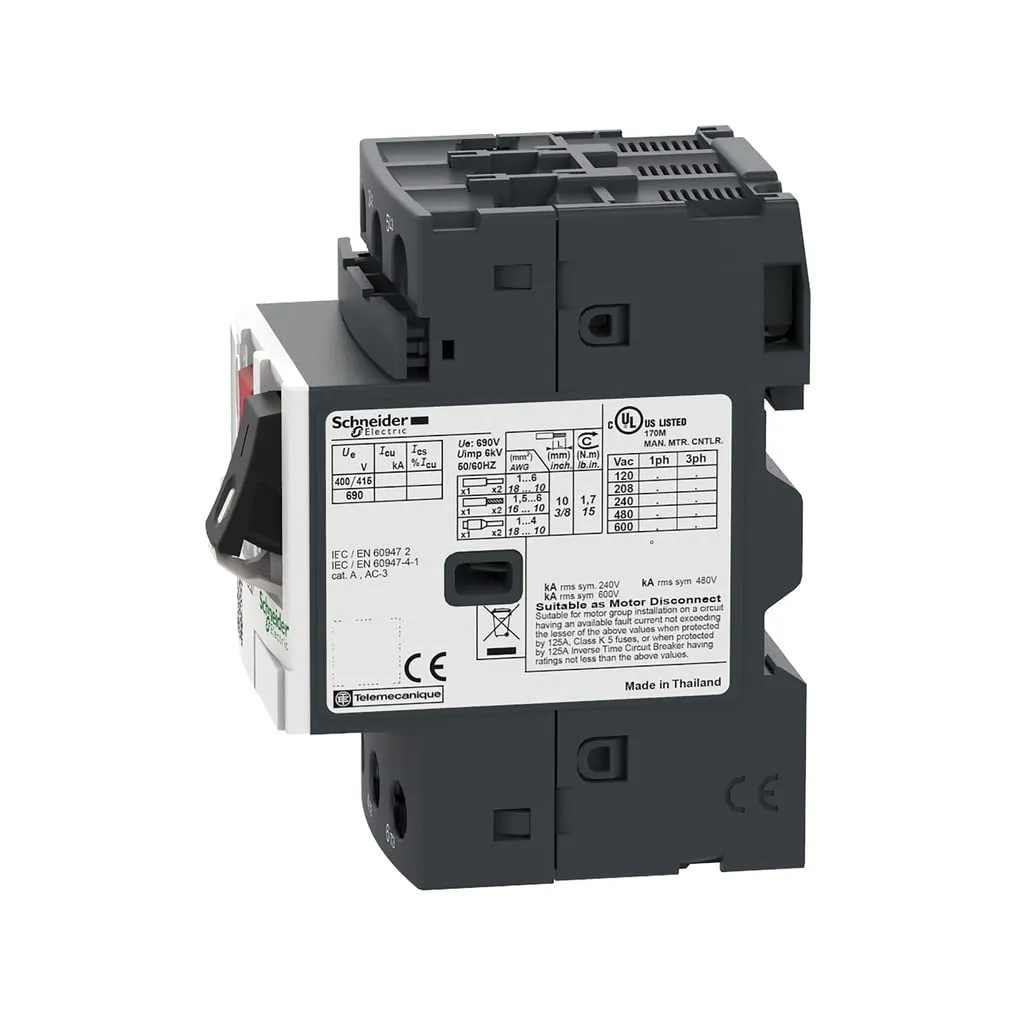

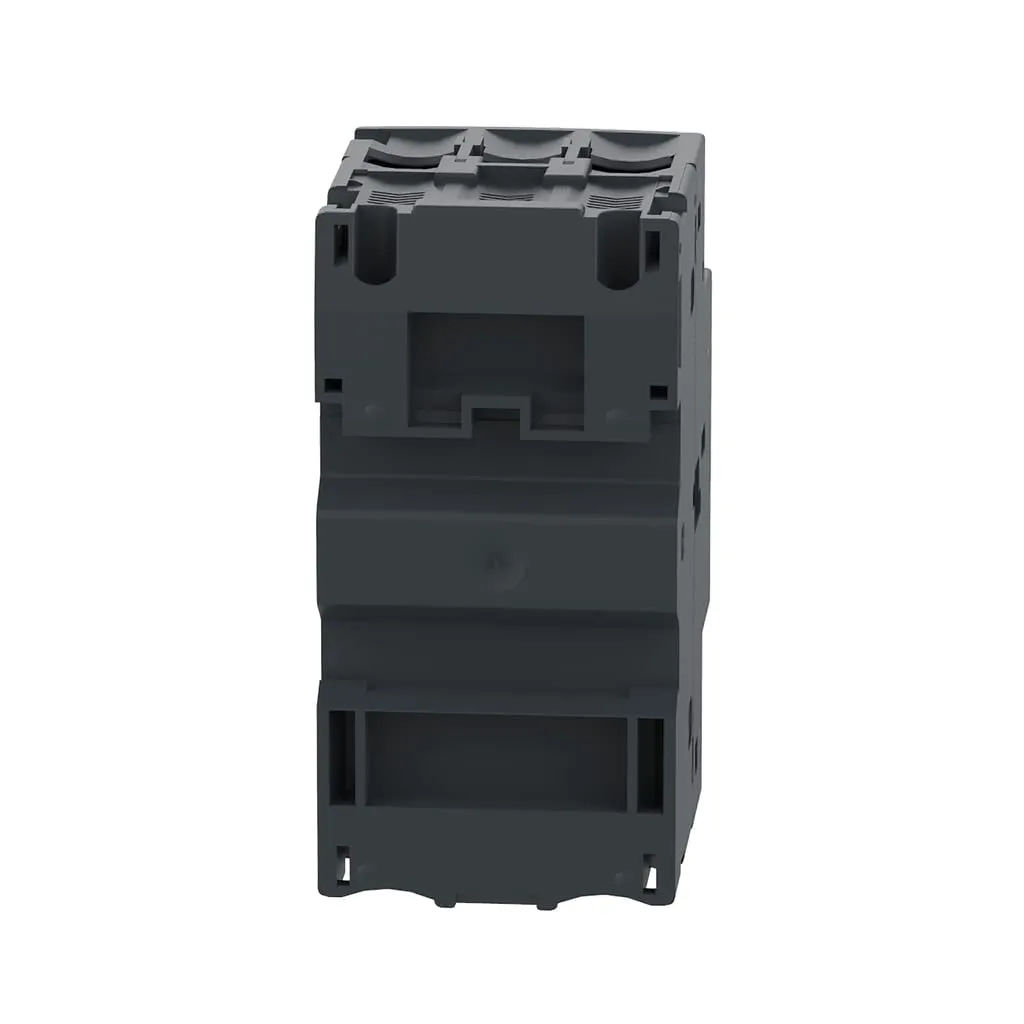

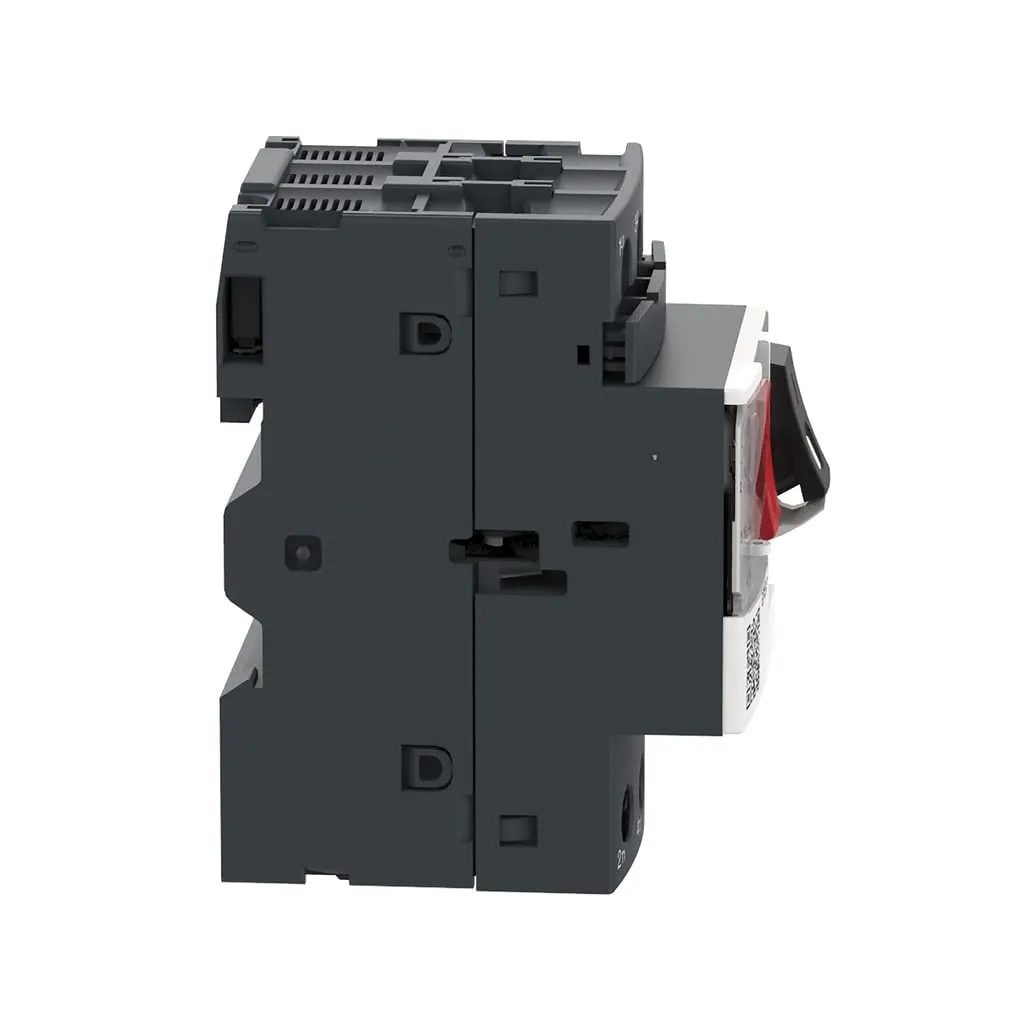

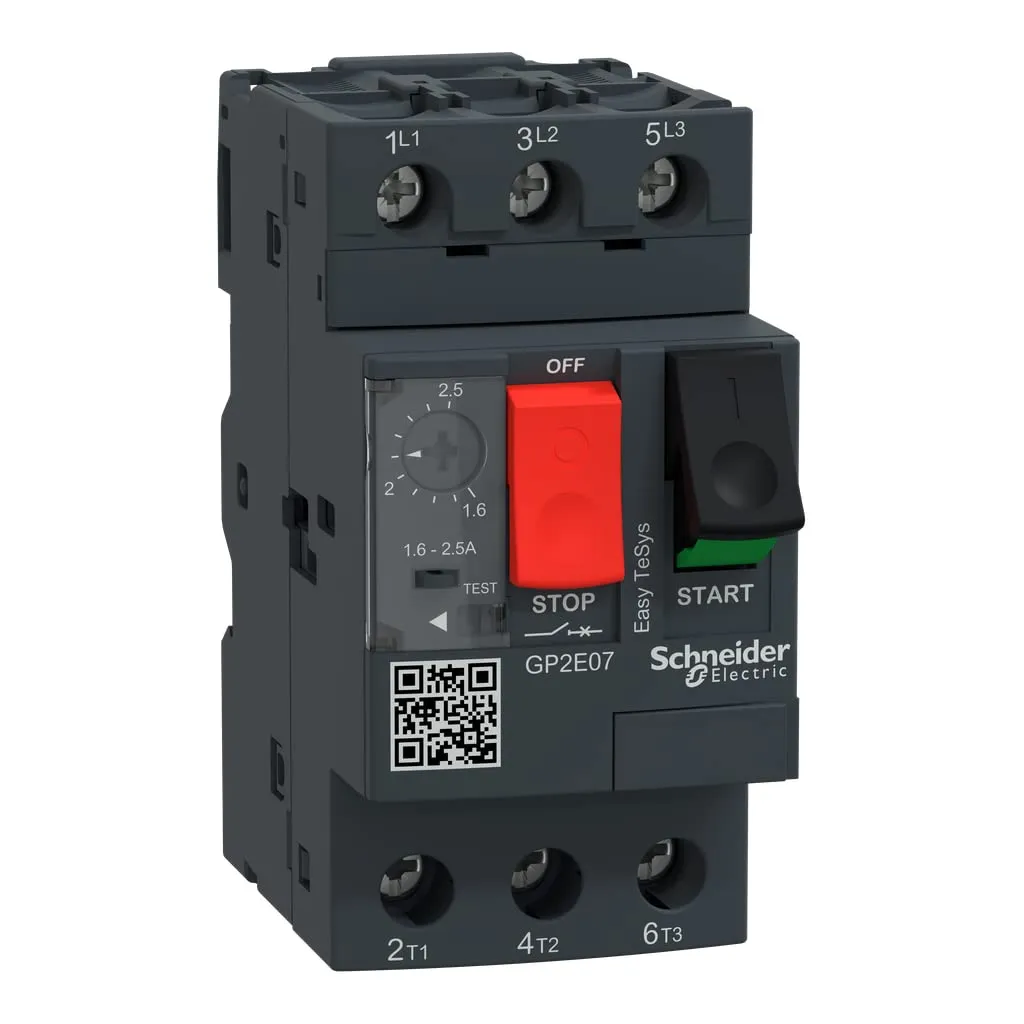

Name: Schneider Electric GP2E07 Easy TeSys 3 Phase Manual Thermal Magnetic Motor Starter, 3 Pole, Screw Clamp Terminals, Push Button, 1.6-2.5 Amps
SKU: 421492

This thermal magnetic starter has up to 20HP, an operational and insulation voltage of 690V AC 50/60 Hz, for 3-Pole electrical motors used in HVAC, elevators, pumps or compressors, and agriculture
This manual starter has a push button On/Off operation and reset switch; has a robust performance of up to 100,000 cycles AC-3 440 Volts
It features a compact and modular design, reduced installation time, and provides motors with essential control & protection
Use with Schneider Electric auxiliary contact block GPEFC11, mounting adapter GV2AF3, busbar GV2G445, enclosure GV2MC01 or GV2MC02 and contactor DPE09G7
Flexibility to add motor disconnects to help met NEC is IEC and cUL certified and green premium compliant (RoHS/REACh)

Easy TeSys manual motor controller, 3 poles (3P), 2.5A/690V, for 3-phase motor applications 0.75kW@400V. It provides a thermal-magnetic protection with a thermal setting range 1.6-2.5A, magnetic tripping at 13xIn, high breaking capacity Icu 100kA@400V. Connection by screw clamp terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, cUL), Green Premium compliant (RoHS/REACh).

Product Dimensions ‏ : ‎ 3.5 x 1.75 x 3.07 inches; 8.47 ounces
Date First Available ‏ : ‎ July 22, 2021
Manufacturer ‏ : ‎ Schneider Electric
Country of Origin ‏ : ‎ Thailand

Schneider Electric GP2E07 Easy TeSys 3 Phase Manual Thermal Magnetic Motor Starter, 3 Pole, Screw Clamp Terminals, Push Button, 1.6-2.5 Amps

Product Details
