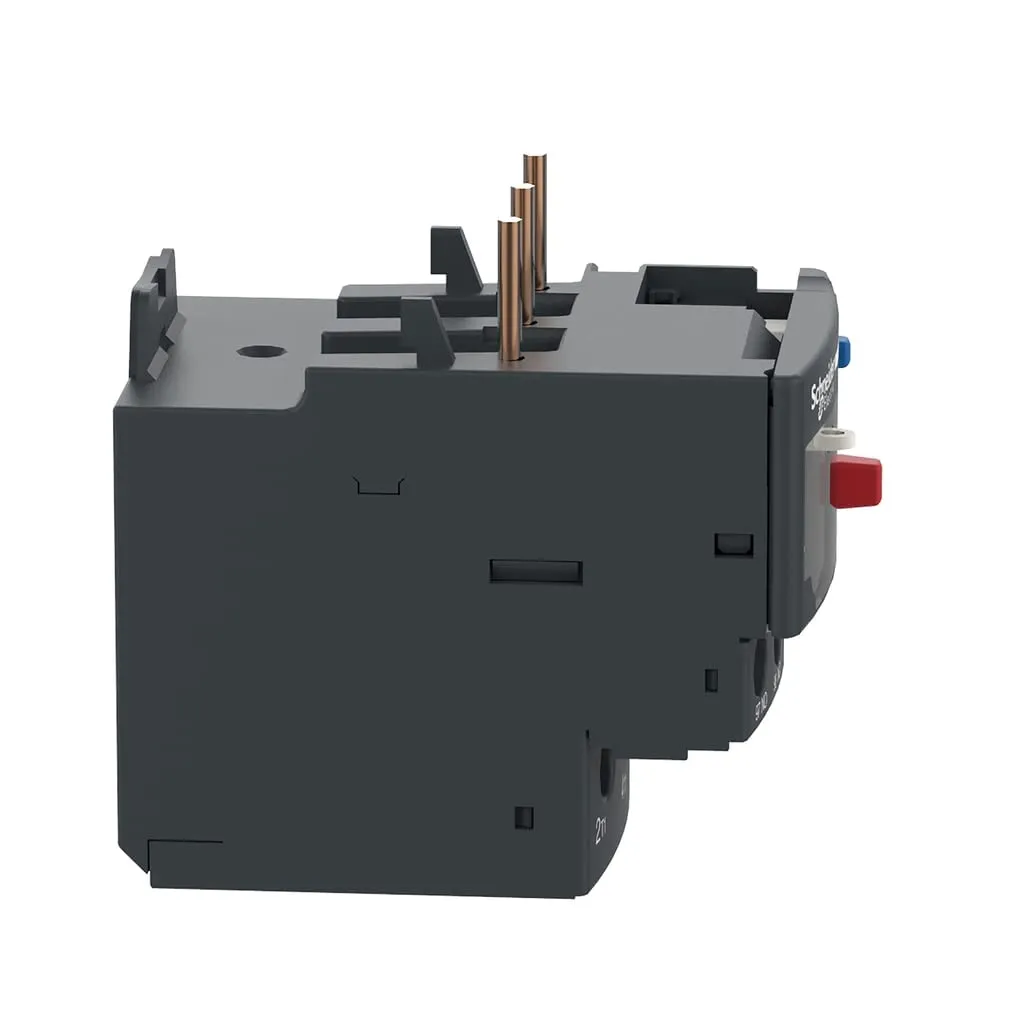

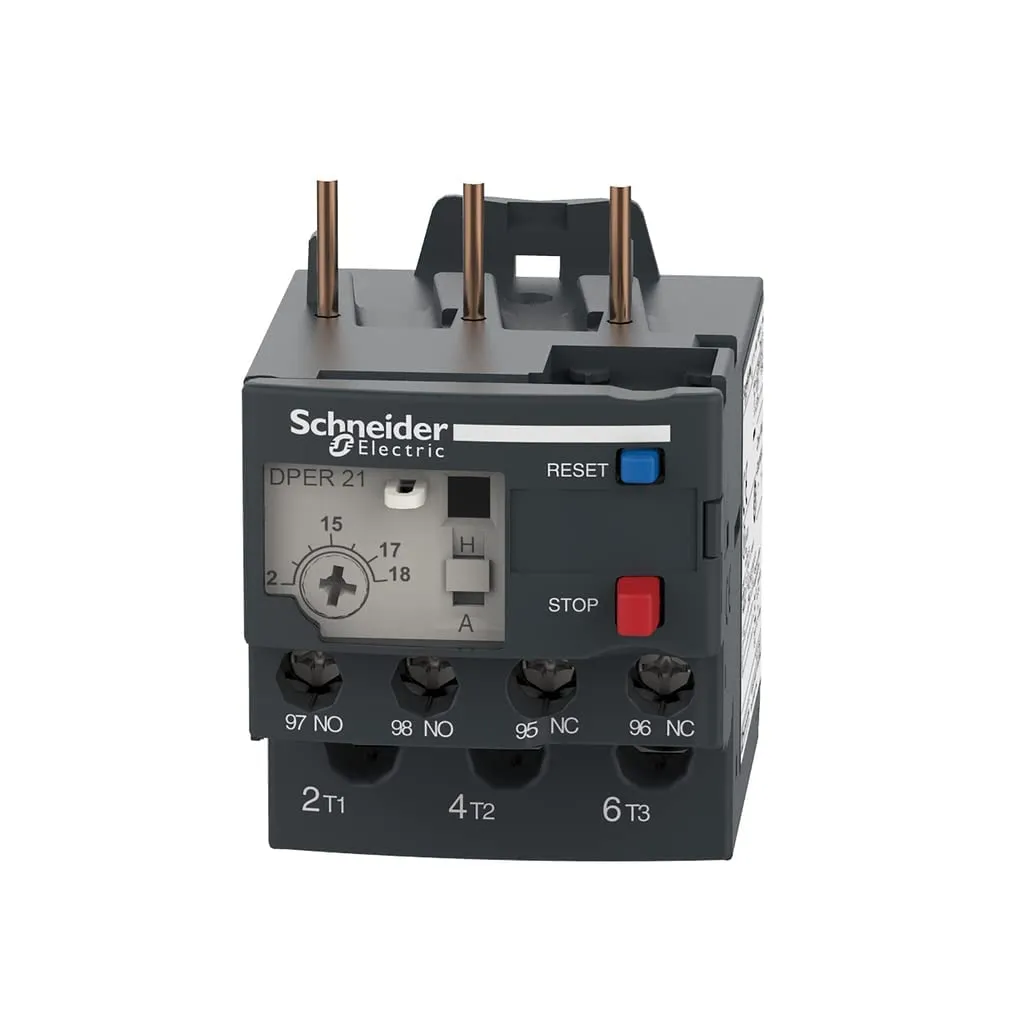

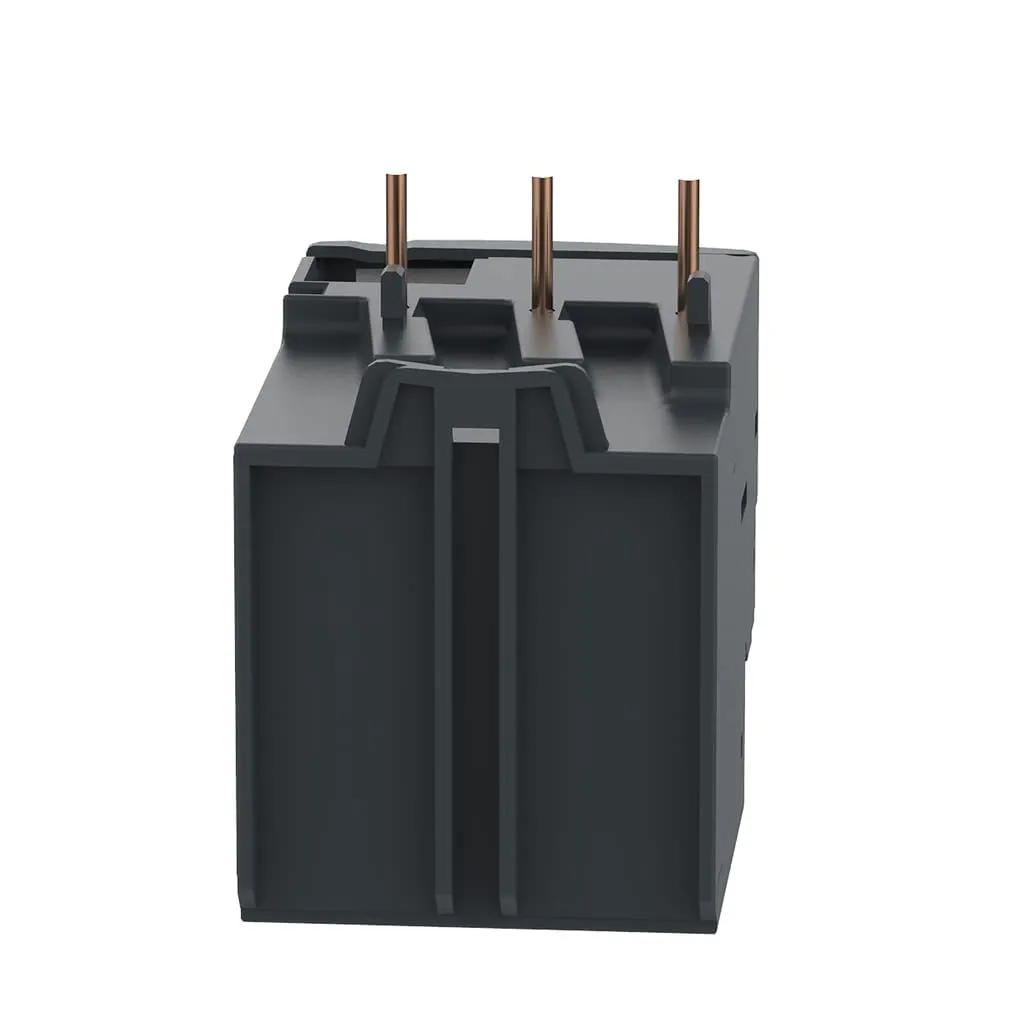

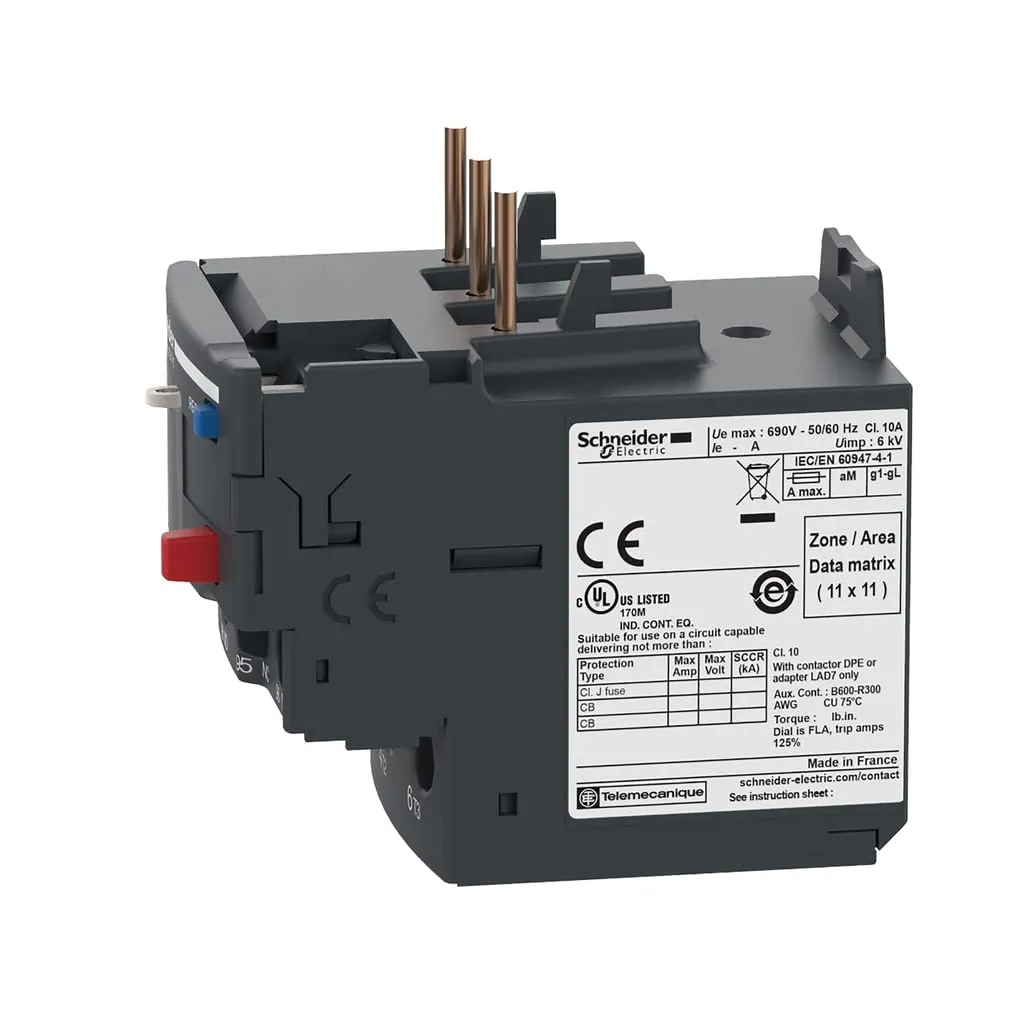

Name: Schneider Electric DPER21 Easy TeSys Thermal Overload Relay with Manual/Automatic Reset, Screw Clamp Terminals | Used with Air Conditioner, Heat Pump, HVAC, AC Compressor and More, 12-18Amps
SKU: 262946

This thermal overload relay can be used in a network frequency of 0-4000hz, the rated insulation is 600V cUL / 690V IEC, and tripping class 10, for protection of 3-phase motors for HVAC, elevators, pumps or compressors, and agriculture
It features a compact and modular design, making it an ideal solution for space-constrained applications and can be quickly and easily configured to meet the needs of your specific application
A reliable and cost-effective solution for protecting your motor against overloads, phase failures, and phase unbalances; durable, compact design to protect from dust and other environmental elements
The thermal overload relay has phase-break protection, manual and automatic reset, temperature compensation, trip indication, test button, stop button
Compatible with these Schneider Electric contactors DPE25G7, DP25BL, DPE25U7, DPE25B7 and Schneider Electric’s Easy TeSys GP2E manual motor starter series; use with LAD7B106 Schneider Electric mounting adaptor

Easy TeSys DPER thermal overload relay, 18A/690V, thermal setting range 12-18A, tripping class 10, for protection of 3-phase motors 7.5kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO 1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, the DPER series of thermal overloads connects directly to the bottom terminals of the 3-pole DPE contactors series ranging from 9-38Amps. Mounting on DIN rail or screw fixing, separated from the contactor. Multi standards certified (IEC, cUL), Green Premium compliant (RoHs/Reach).

Product Dimensions ‏ : ‎ 2.56 x 1.77 x 2.76 inches; 3.88 ounces
Date First Available ‏ : ‎ July 22, 2021
Manufacturer ‏ : ‎ Schneider Electric
Country of Origin ‏ : ‎ France

Schneider Electric DPER21 Easy TeSys Thermal Overload Relay with Manual/Automatic Reset, Screw Clamp Terminals | Used with Air Conditioner, Heat Pump, HVAC, AC Compressor and More, 12-18Amps

Product Details
