- Premium Contactors offers a completely encased and compact design to protect the contactor from dust and other environmental elements
- The universal mounting plate eliminates changing hole patterns when replacing competitive contactors
- Equipped with binding head screws and quick connect terminals (side-by-side) for easy electrical connection
- Premium Contactors contactors used in applications, other than HVAC, such as elevators, pools, food processing, pumps/compressors, lighting, hoists and cranes, battery chargers, printing presses, vending machines, and agriculture
- UL Recognized, CSA certified, ARI 780 790 Standard, CE marked, RoHS Complaint
Premium Contactors

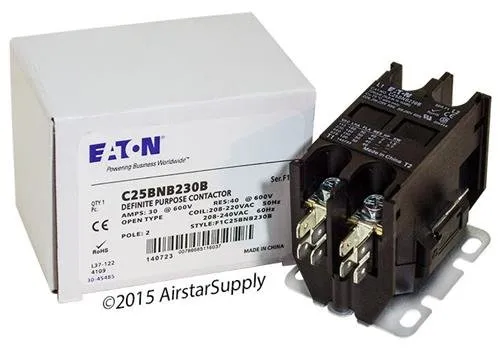

Definite purpose contactors are electrically activated switches designed for application-specific use (i.e., HVAC, compressors, etc) to provide compact load control that can handle diverse switching needs. These reliable control components are available up to 120 amp capacity and in 1- or 3-phase configurations at coil voltages from 24 to 240 VAC.
Features:
- CONTACTOR
- Amperage (FLA): 30A @ 600V
- Resistive (RES): 40A @ 600V
- Coil Voltage: 240V
- Poles: 2 (Double)
- Equipped with Binding Head Screws and Quick Connect Terminals for Ease of Installation
Additional Applications:
- Eaton Contactors can be used in applications such as elevators, pools, food processing, pumps/compressors, lighting, hoists and cranes, battery chargers, printing presses, vending machines, and agriculture.
Replaces:
- GE CR453CC2BAA
- Siemens / Furnas 45EG20AG
- Square D 8910DP32V09
- 3100Y20U6999CL
- Allen Bradley 400-DP30NA2
- Grainger 49C074
Note : Images are for illustration only. Actual item may vary.
- Item Weight : 14 ounces
- Date First Available : August 23, 2018
- Manufacturer : Generic
