- GENERAL || Brand : FBT || Model Number : XSUB115SA | X-SUB115SA || UPC : 8034138441451 || PHYSICAL SPECIFICATIONS || Low Frequency Woofer : 15-inch / 3-inch coil Input Connectors : XLR with loop Net Dimension (WxHxD) : 17.91 x 23.07 x 22.44 inches / 455 x 586 x 570 mm || Net Weight : 66.13 lbs / 30 Kg || Enclosure Material Plywood || Grille Steel with powder | coat black paint finish || Power Cord 16,4ft / 5mt || "
- APPLICATIONS || Permanent installations in : Theatres, Concert halls, Clubs, Places of Worship, Conference rooms, Indoor sports, Arenas and Stadiums. || Sound reinforcement for live events : Touring, Bands, Orchestras. || Designed as the perfect partner for the FBTX-LITE and X-PRO series. ||
- KEY FEATURES || Active subwoofer || 15mm / 0,59"" birch plywood cabinet || 15"" woofer / 3"" voice coil || 1200W RMS Class D power amplifier || 4 DSP presets || Frequency response 42Hz - 120Hz || M20 stand pole mount || Optional 100mm / 3,93"" transport wheels ||
- ELECTRONIC SPECIFICATIONS || System Type : Bass Reflex || Internal Amplifier : 1200 Watts || Input Impedance : 22 kOhm || Frequency Response : 42Hz - 120Hz (@-6dB) || Maximum SPL peak : 135dB half space || Dispersion : omnidirectional || AC Power Requirement : 600 Watts ||

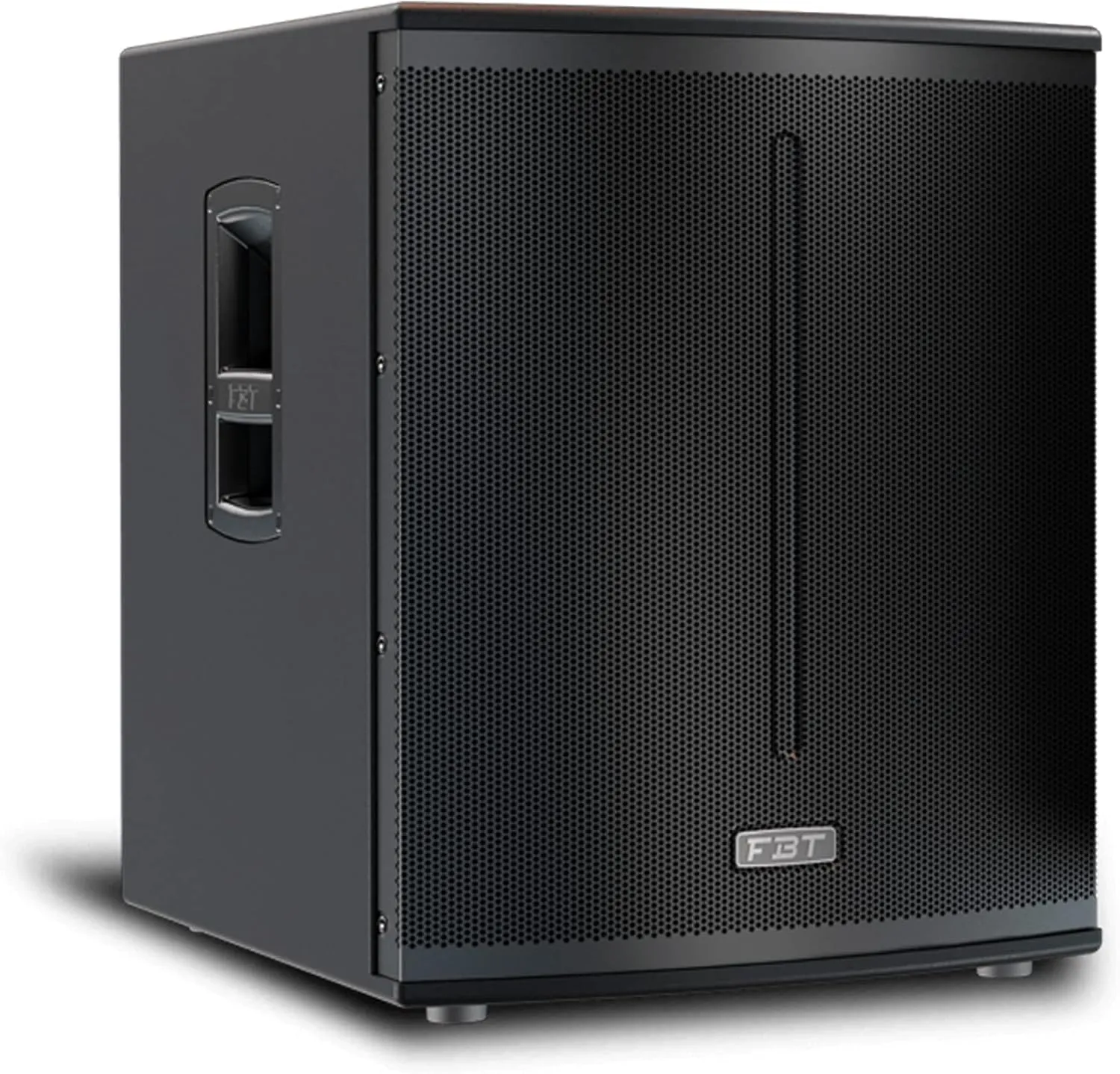

- The FBT X-SUB 115SA , 1 x 15-inch bass-reflex design subwoofer, is the perfect low frequency extension and the ideal companion for the FBT X-LITE and FBT X-PRO series. Equipped with a 15" (380mm) high excursion woofer and a 1200W RMS internal amplifier. It has a digital signal processor with 4 presets, allowing extensive customization of low frequencies up to mid-high levels. The robust 15mm (0.59 inch) birch plywood box is specially designed to satisfy all installation requirements.
- About this item || Configuration: Bass Reflex / Integrated Amplifier LH/HF: 1200W / Frequency Response: 42Hz - 120Hz (-6dB) || Woofer: 15" coil, 3" coil / SPL Cont/Peak max: 135dB Half Space || Dispersion: Omnidirectional / Input Impedance: 22k Ohm || Input connector: XLR with loop / Power cable: 3 m || Dimensions: 455 x H586 x 570 mm / Weight: 30 kg.
"PRODUCT DESCRIPTION The FBT X-SUB 115SA , 1 x 15-inch bass-reflex design subwoofer, is the perfect low frequency extension and the ideal companion for the FBT X-LITE and FBT X-PRO series. Equipped with a 15"" (380mm) high excursion woofer and a 1200W RMS internal amplifier. It has a digital signal processor with 4 presets, allowing extensive customization of low frequencies up to mid-high levels. The robust 15mm (0.59 inch) birch plywood box is specially designed to satisfy all installation requirements. X-SUB 115SA is equipped with an M20 stand support for mounting a satellite, and two aluminum handles, and offers the option of installing four 100mm wheels. The FBT X-SUB 115SA provides the following performance criteria: frequency response of 42Hz to 120Hz @ -6dB, maximum SPL of 135 dB peak, 1200W Class D amplifier. The FBT X-SUB 115SA provides a DSP processor with 4 presets (2 responses with 2 different cut-off frequencies). The FBT X-SUB 115SA feature 0,59"" birch plywood construction with scratch resistant black paint finish with M20 top mounted stand adapter, two FBT design aluminum handles and four optional 100mm/3,93"" transport wheels. The control panel provides two channels with stereo combo XLR/jack in-outs, stereo XLR HP filter outs, level control, preset switch, 0°/180° phase reversal switch, prt-lmt led indicators. APPLICATIONS || Permanent installations in : Theatres, Concert halls, Clubs, Places of Worship, Conference rooms, Indoor sports, Arenas and Stadiums. || Sound reinforcement for live events : Touring, Bands, Orchestras. || Designed as the perfect partner for the FBTX-LITE and X-PRO series. || KEY FEATURES || Active subwoofer || 15mm / 0,59"" birch plywood cabinet || 15"" woofer / 3"" voice coil || 1200W RMS Class D power amplifier || 4 DSP presets || Frequency response 42Hz - 120Hz || M20 stand pole mount || Optional 100mm / 3,93"" transport wheels || ELECTRONIC SPECIFICATIONS || System Type : Bass Reflex || Internal Amplifier : 1200 Watts || Input Impedance : 22 kOhm || Frequency Response : 42Hz - 120Hz (@-6dB) || Maximum SPL peak : 135dB half space || Dispersion : omnidirectional || AC Power Requirement : 600 Watts || PHYSICAL SPECIFICATIONS || Low Frequency Woofer : 15-inch / 3-inch coil Input Connectors : XLR with loop Net Dimension (WxHxD) : 17.91 x 23.07 x 22.44 inches / 455 x 586 x 570 mm || Net Weight : 66.13 lbs / 30 Kg || Enclosure Material Plywood || Grille Steel with powder | coat black paint finish || Power Cord 16,4ft / 5mt || "
