- 3 Poles, 3 Phase Contactor, 300 cycles per hour (AC-1, AC-3)
- Auxiliary contacts 1 NO, 1 NC, Short circuit protection – gG Type Fuse 800 A
- Rated impulse with stand voltage 8 kV
- Rated operation voltage 1000 V, for up to 250 kW motors
- Rated operational current (AC-1) 700 A (1000 V), AC-3 200 A (1000 V)

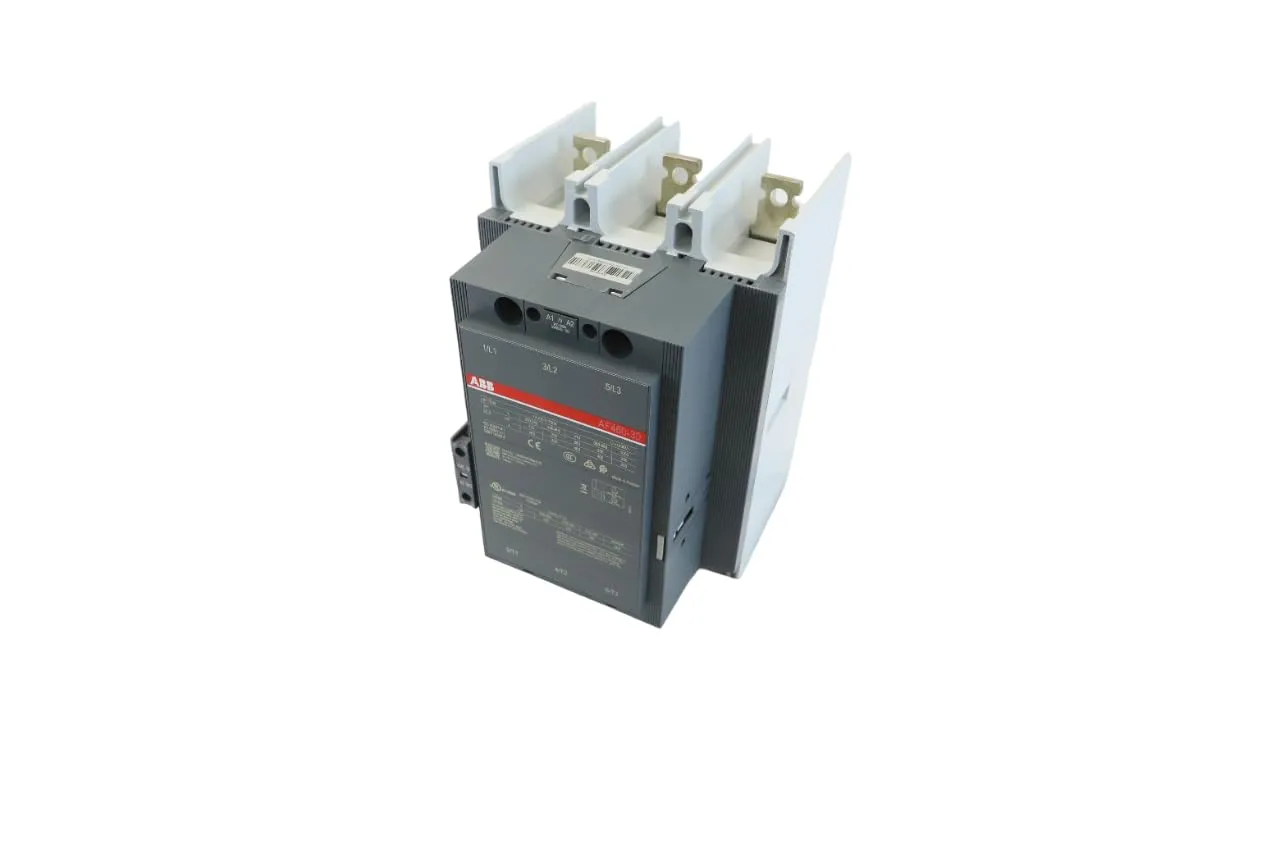

This capable AF series 3 pole contactor has been designed for use in various industrial applications 3 phase applications such a motor starting, isolation, bypass, and distribution applications up to 1000V Max.This contactor comes complete with pre-mounted auxiliary contacts and main circuit bars and is capable of controlling motors up to 250 kW / 400 VAC (AC-3) or 400 hp / 480 V UL and switching power circuits up to 700 A (AC-1) or 650 A UL general use.Operated with a wide control range of between 100 – 250 VAC/DC, managing large control voltage variations and reducing panel energy consumption, ensuring distinct operations in unstable networks. This ABB Contactor has surge protection is built-in, offering a compact solution for many industrial and commercial applications. AF series contactors have a block type design and can easily be extended with add-on auxiliary contact blocks and a wide range of additional accessories.
- Date First Available : October 24, 2019
- Manufacturer : ABB
